Description
Product Overview

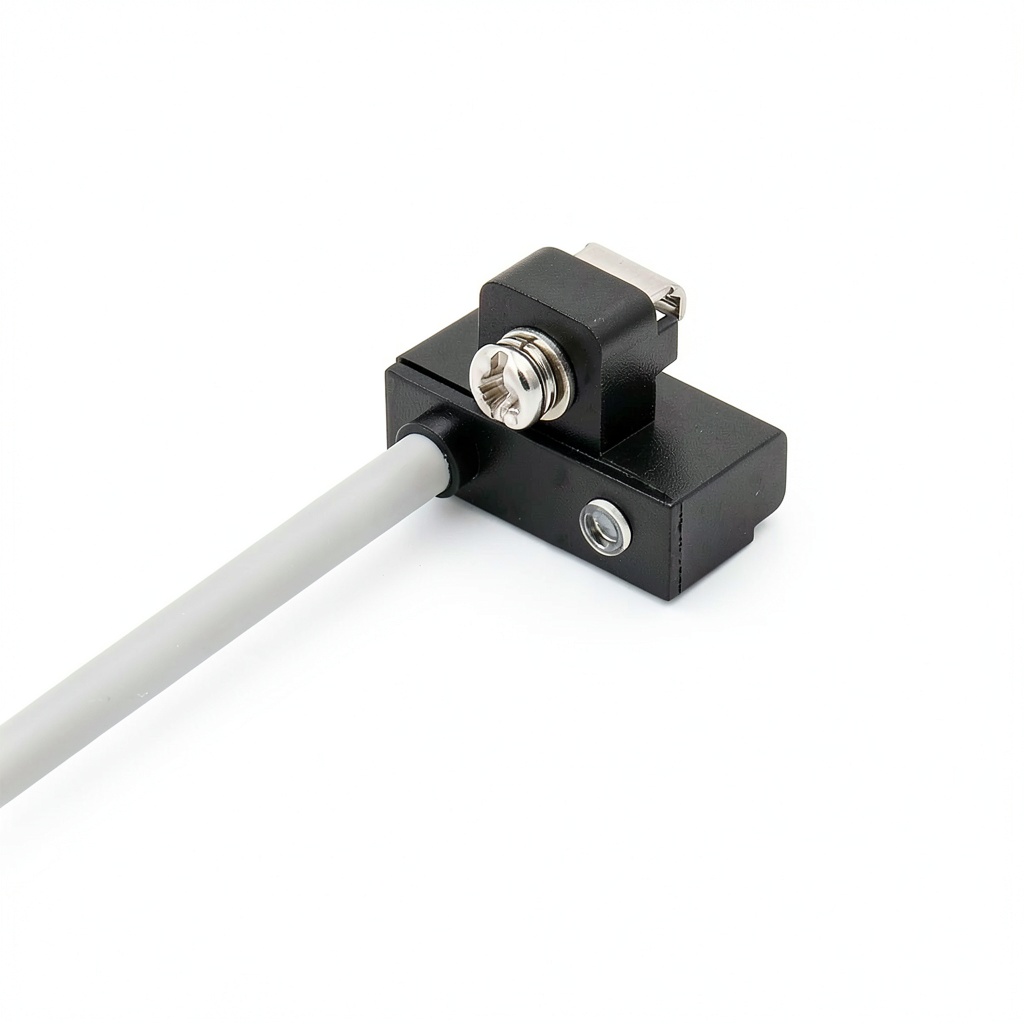

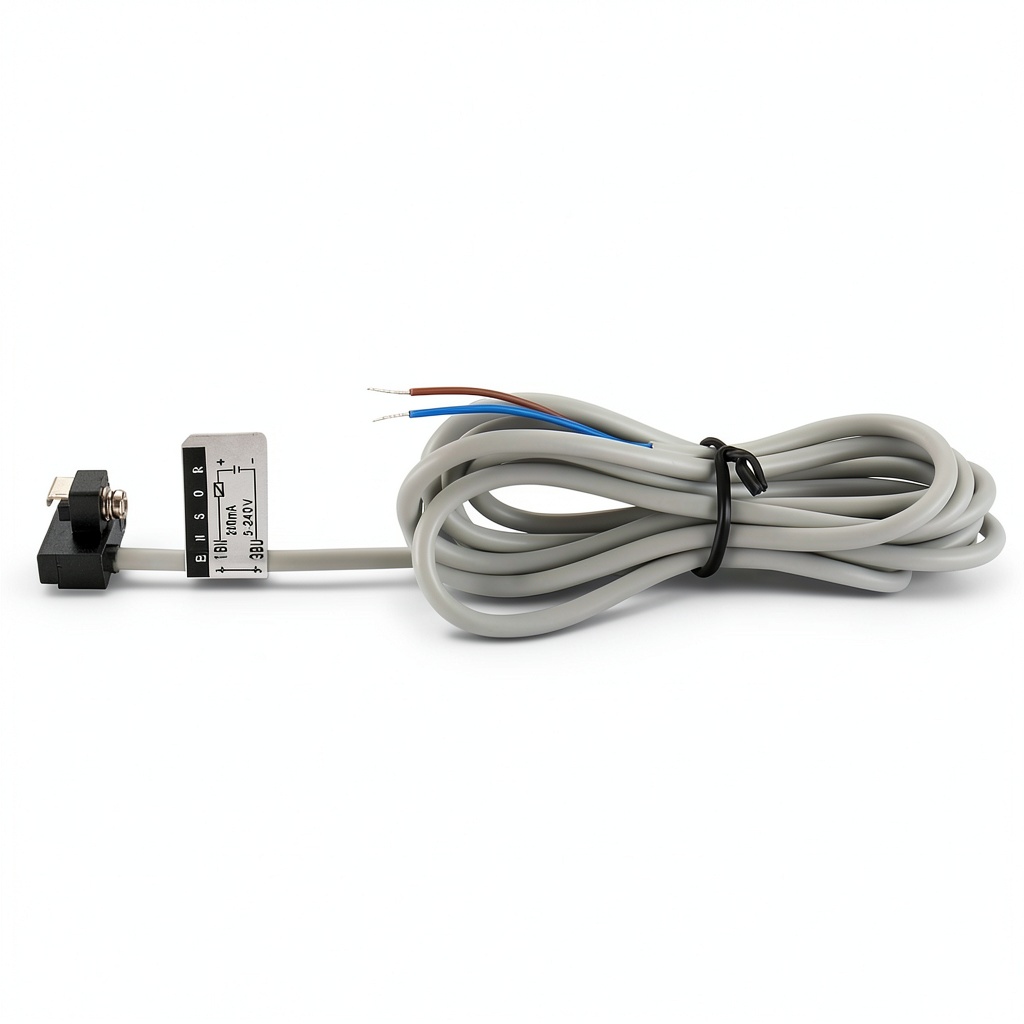

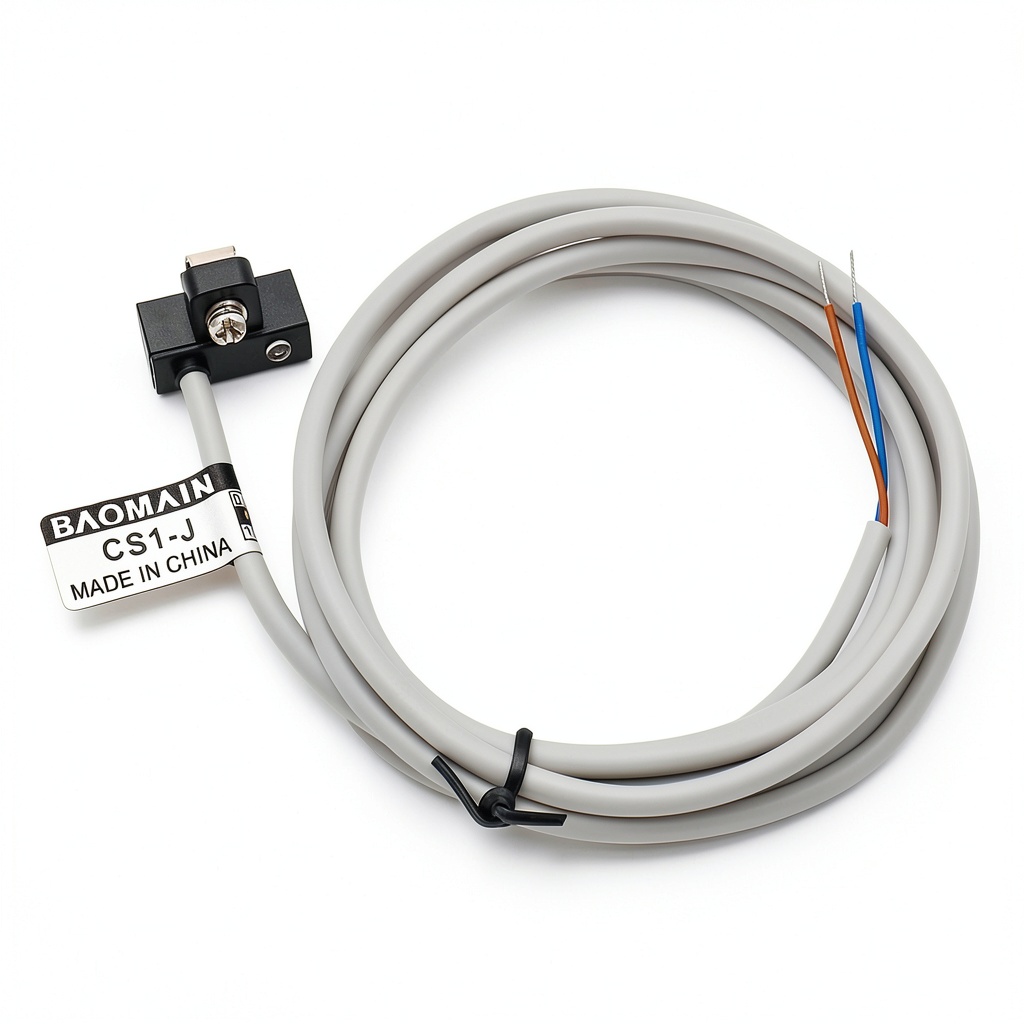

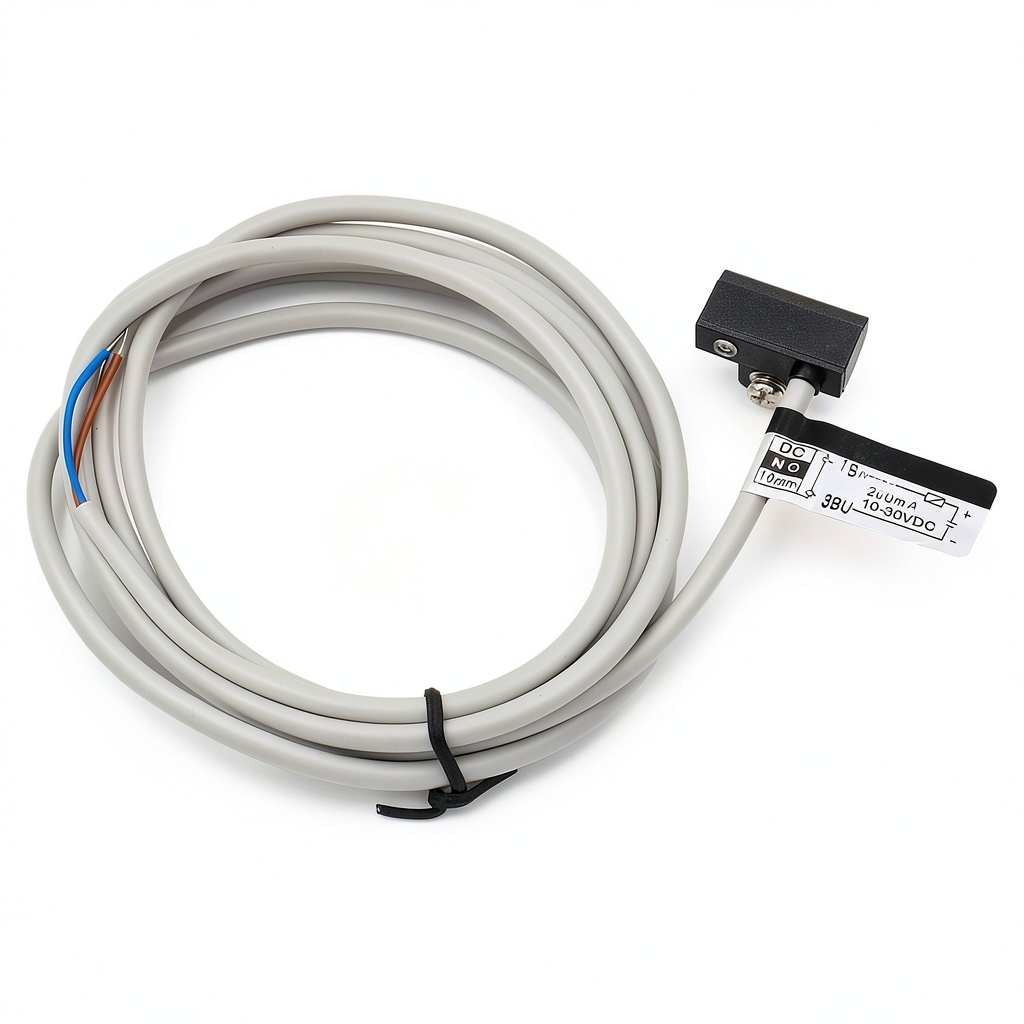

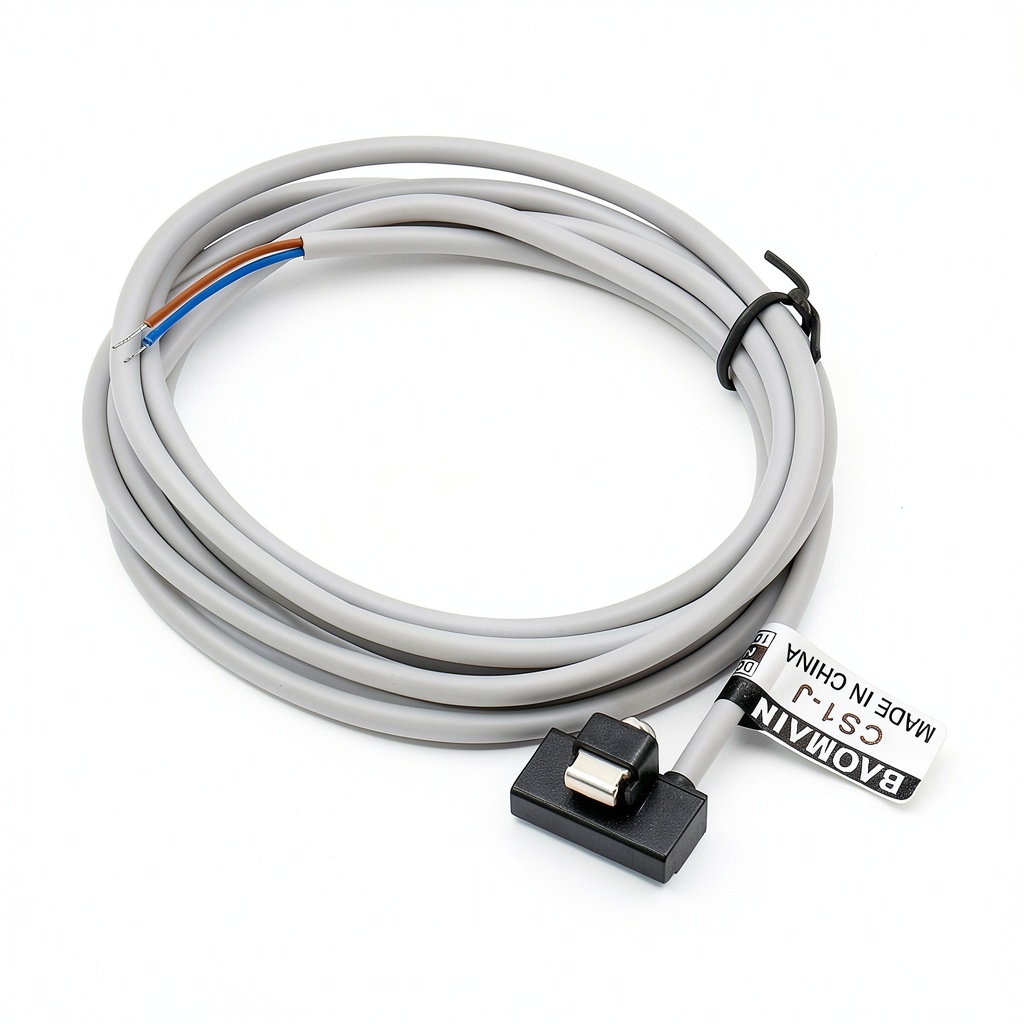

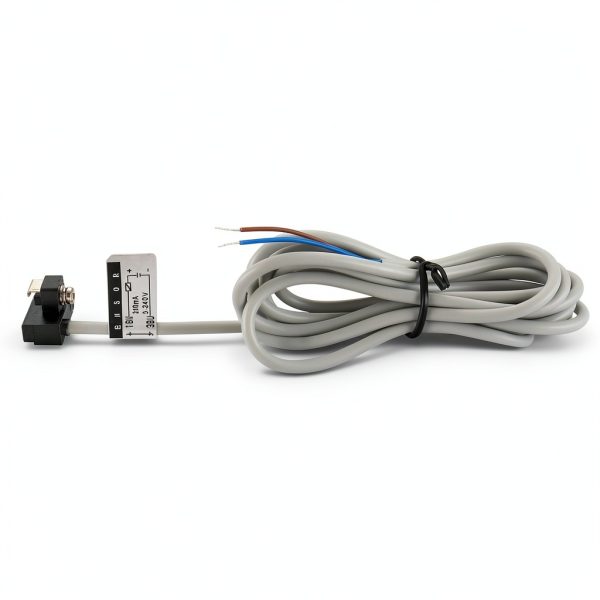

The Baomain CS1-J magnetic reed switch is engineered specifically for integration with pneumatic cylinders and other industrial control applications. Operating on a flexible DC voltage range of 10-30V, the switch draws a modest 100mA current while providing a robust 10W contact rating, ensuring reliable signal transmission even in demanding environments. Its compact dimensions of 22x15x16mm allow it to fit into confined spaces, and the 1.5m black cable offers convenient routing without sacrificing durability. Constructed from high‑quality materials, the reed switch utilizes a sealed glass envelope that protects the internal contacts from dust, moisture, and mechanical wear, delivering a long service life with minimal maintenance. The magnetic actuation mechanism provides contact‑free operation, eliminating the need for physical wear components and reducing the risk of failure due to vibration or shock.
Usage
This reed switch is ideal for a wide range of industrial scenarios, including automation systems, robotic arms, valve control panels, and safety interlocks. Its low power consumption makes it suitable for battery‑powered or energy‑efficient installations, while the 10W contact capacity supports the switching of moderate loads such as indicator lights, relays, and low‑power actuators. The switch’s magnetic sensing capability allows it to be mounted on moving parts of pneumatic cylinders without direct mechanical linkage, providing precise position feedback for closed‑loop control systems. Whether used in harsh factory floors, cleanroom environments, or outdoor equipment enclosures, the CS1-J maintains consistent performance thanks to its sealed design and resistance to contaminants. The 1.5m cable length offers flexibility for mounting the switch away from control panels, simplifying wiring and reducing clutter.
Why Choose Us
Choosing the Baomain CS1-J means selecting a component that combines engineering excellence with practical convenience. Baomain has a reputation for delivering high‑reliability components that meet stringent industrial standards, and this reed switch is no exception. Each unit undergoes rigorous testing for voltage tolerance, current draw, and contact durability, ensuring that you receive a product that performs as advertised. The sealed glass envelope protects the internal reed and contacts from environmental hazards, while the magnetic actuation eliminates wear points common in mechanical switches. Additionally, Baomain provides responsive technical support and a clear warranty policy, giving you confidence that any questions or issues will be addressed promptly. The CS1-J’s compact form factor and ready‑to‑install cable reduce assembly time, allowing engineers to focus on system integration rather than component preparation.
Key Features
- Wide DC voltage range (10‑30V) with low 100mA current draw for energy‑efficient operation.
- 10W contact rating supports reliable switching of lights, relays, and low‑power actuators.
- Compact 22x15x16mm housing fits easily into tight mechanical spaces.
- Sealed glass envelope protects against dust, moisture, and mechanical wear for long‑life performance.
- Dedicated Baomain technical support and warranty ensure peace of mind after purchase.
FAQ
What voltage range can the CS1-J operate within?
The CS1-J is designed to operate safely on DC voltages from 10V up to 30V, providing flexibility for many industrial power supplies.
Is the reed switch suitable for high‑vibration environments?
Yes. Because the switch uses magnetic actuation without physical contact, it is highly resistant to vibration and shock, making it ideal for moving machinery and pneumatic cylinders.
Can the CS1-J be used to switch AC loads?
The CS1-J is specified for DC operation. For AC applications, a suitable interface circuit or relay should be used to ensure proper isolation and safety.
What is the expected lifespan of the magnetic reed switch?
When operated within the specified voltage and current limits, the sealed reed switch typically exceeds 10 million actuations, offering a long service life with minimal maintenance.
How does the 1.5m cable length affect installation?
The 1.5m (approximately 5 ft) black cable provides ample reach from the switch to control panels or PLC inputs, simplifying wiring and allowing flexible placement without the need for additional extension cables.
