Description
Product Overview

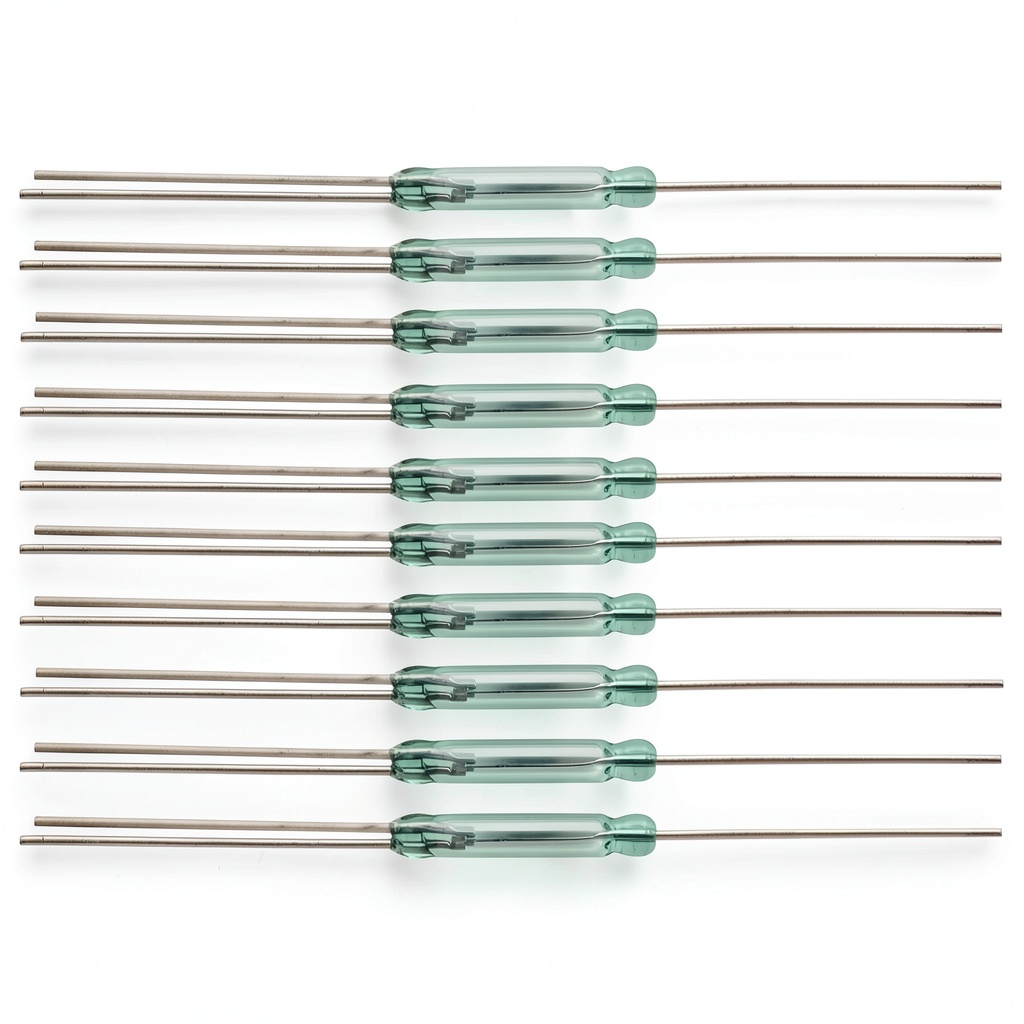

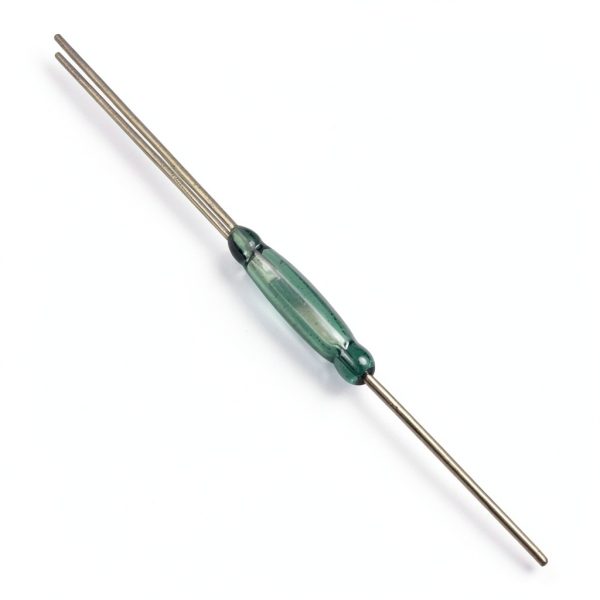

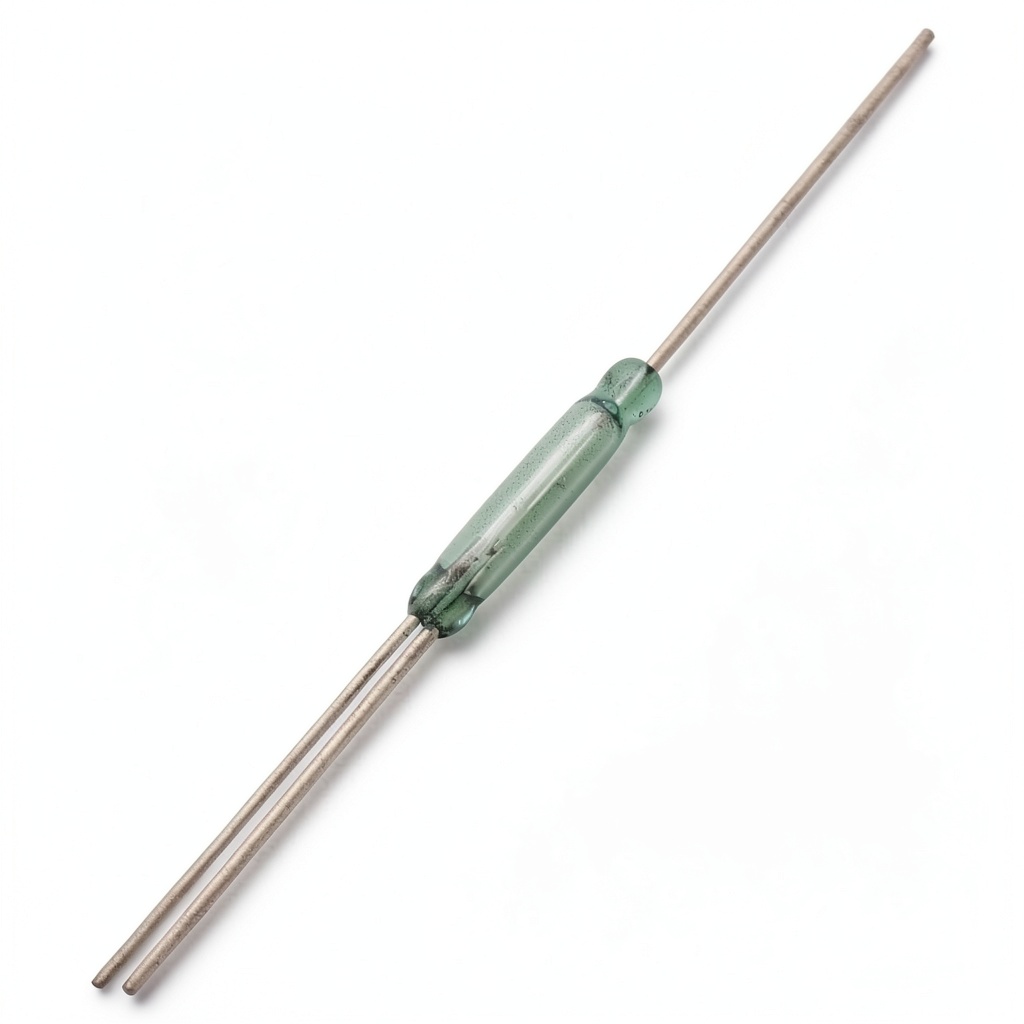

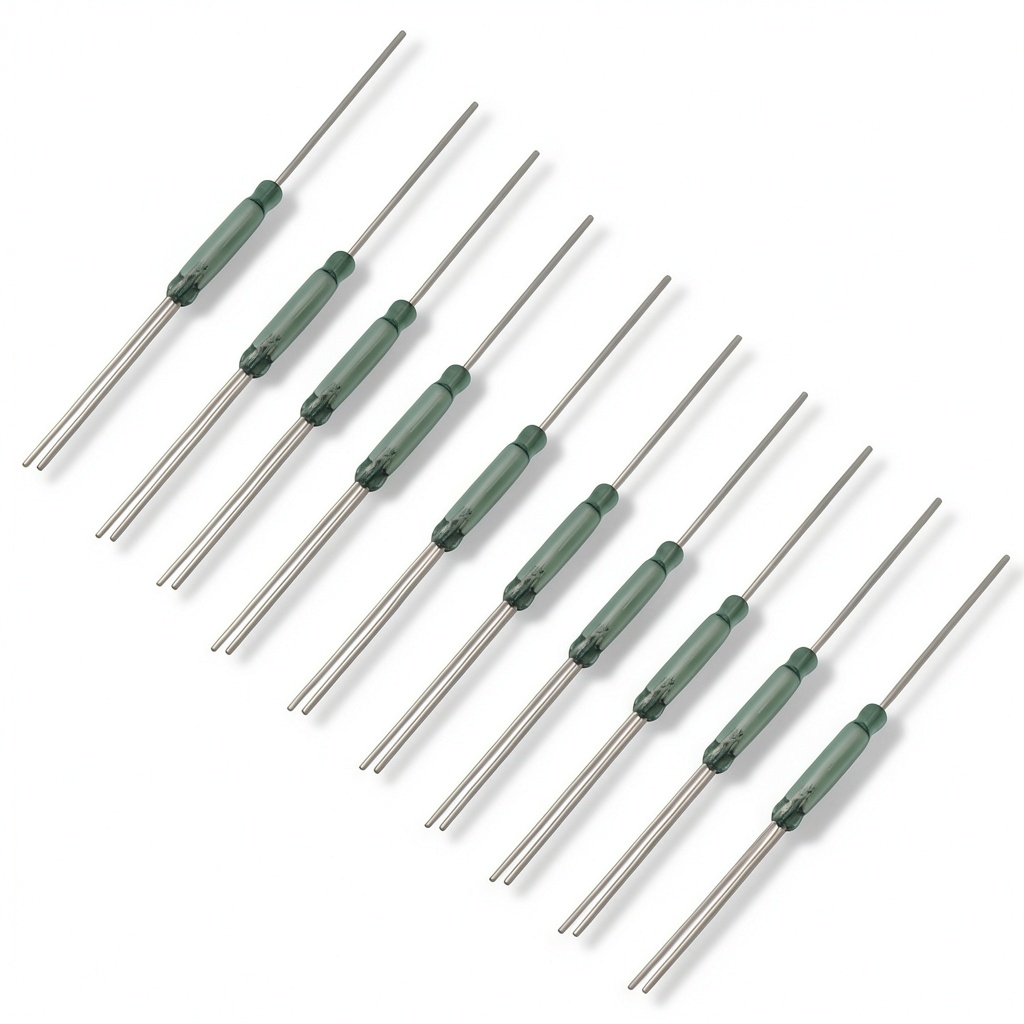

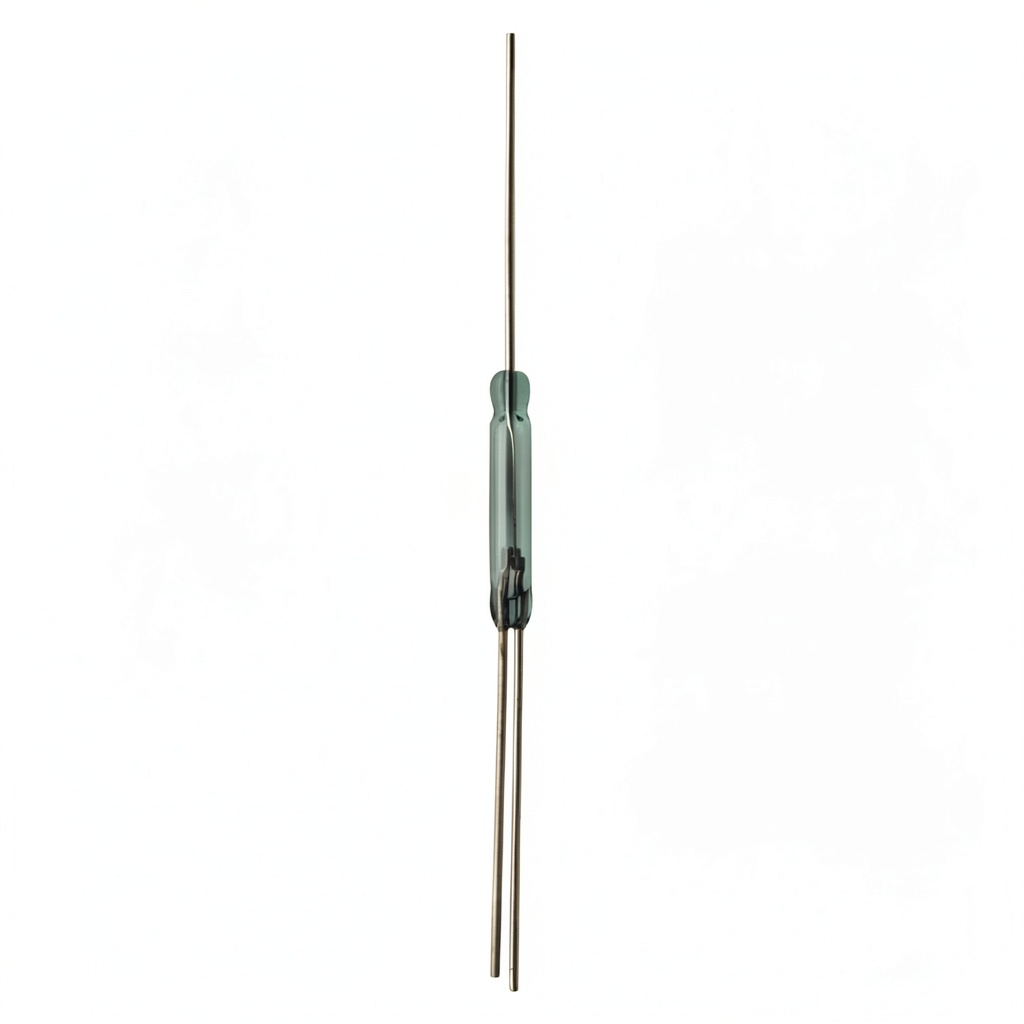

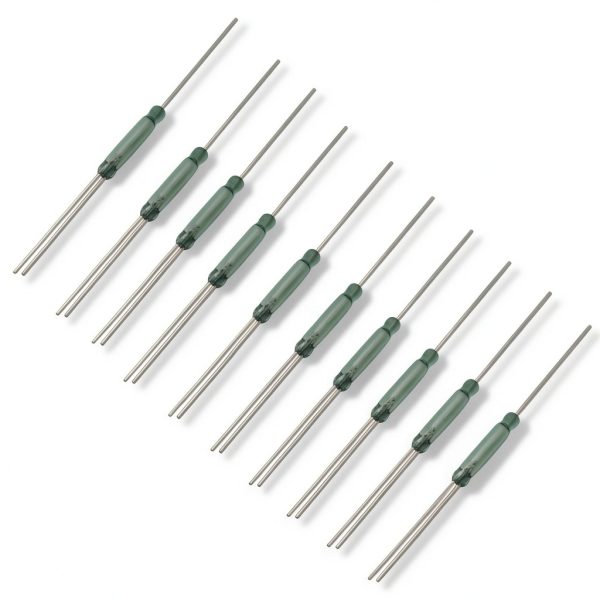

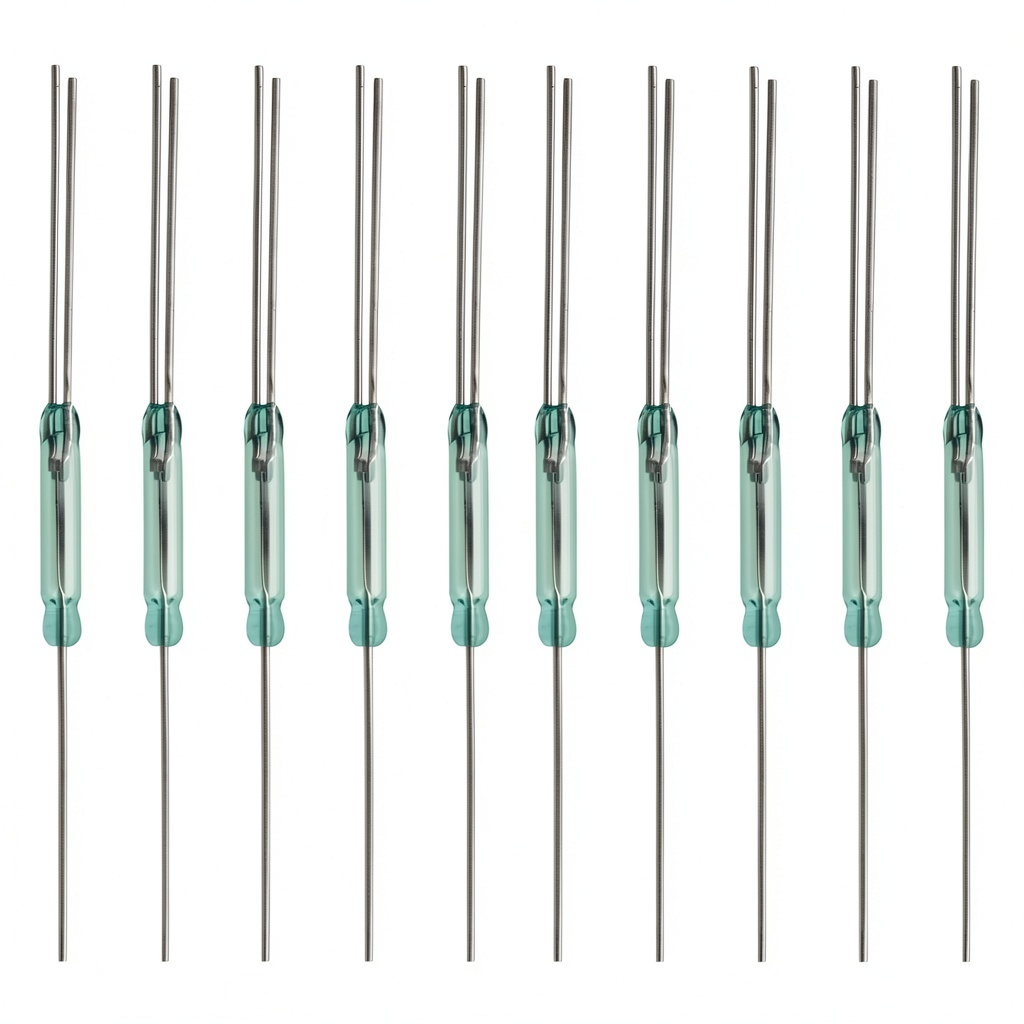

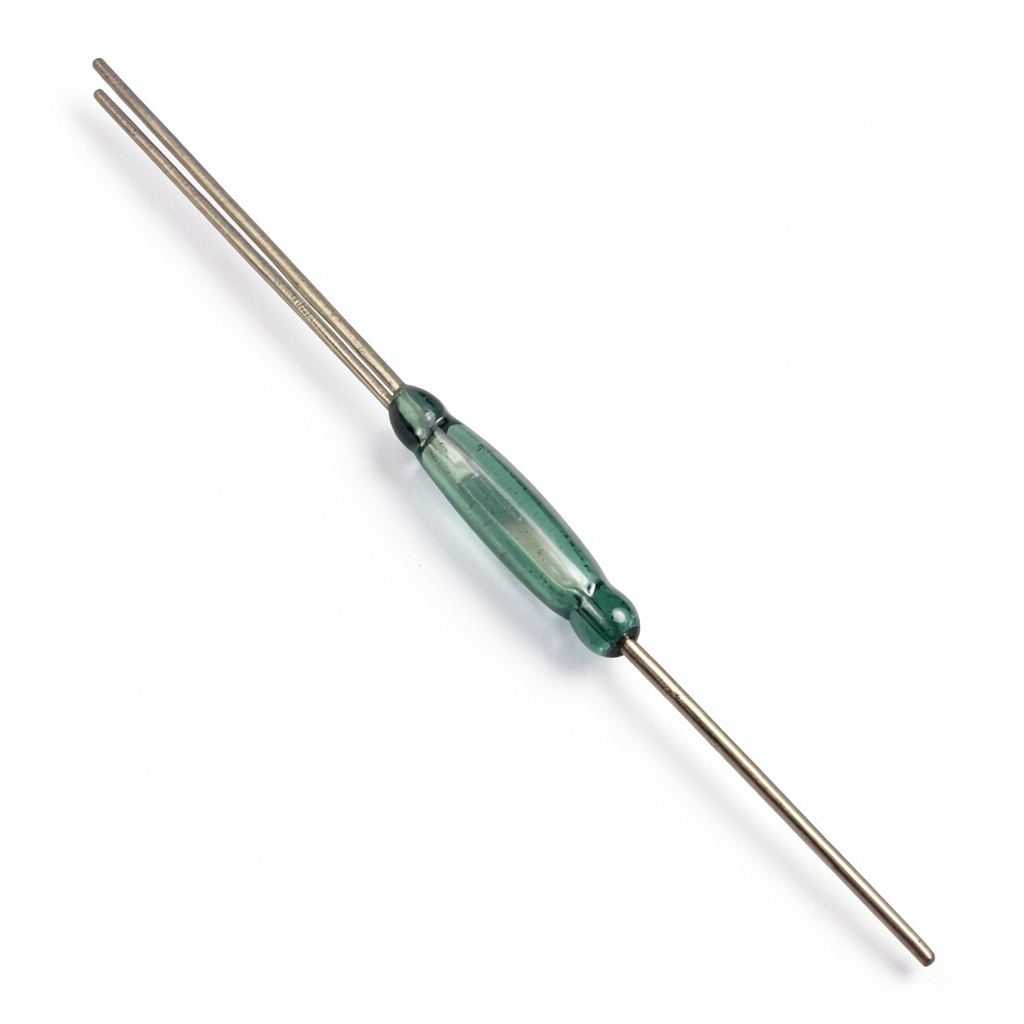

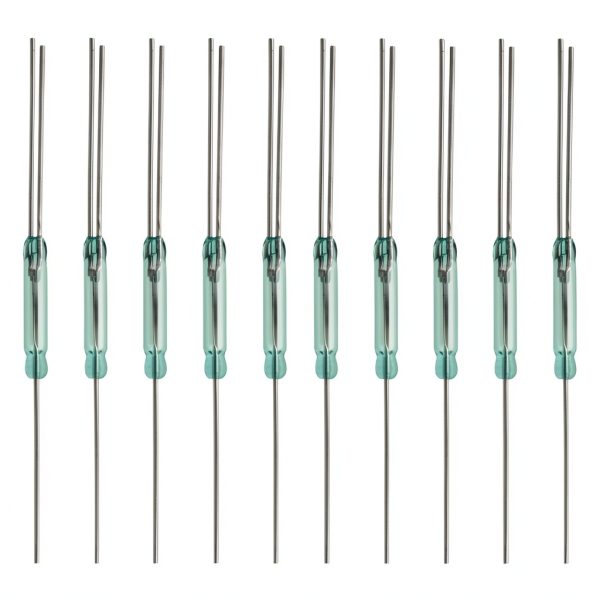

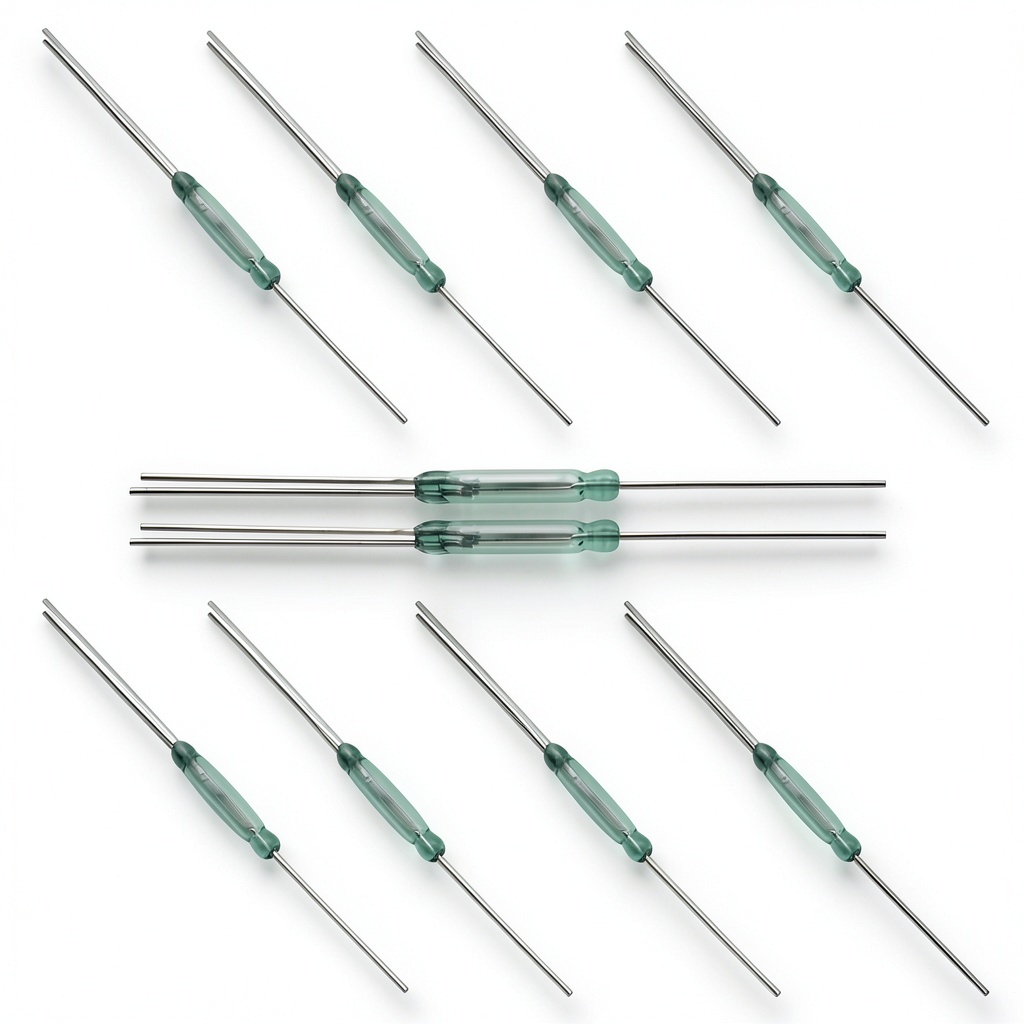

The 10‑piece reed switch kit from GODIYMODULES is engineered for demanding industrial environments where reliability and precision are paramount. Each switch measures 2.5x14mm, featuring a compact 3‑pin magnetic design that can be set to normally open (NO) or normally closed (NC) configurations, giving engineers flexibility in circuit design. The switches are rated for a maximum voltage of 60 V DC, a switching current of 0.25 A, and a load current of 0.5 A, ensuring they can handle a wide range of control applications without overheating.
Technical specifications highlight a contact resistance of no more than 115 mΩ and an insulation resistance of at least 2 × 10⁷ Ω, providing excellent isolation between contacts. The action time of 0.25 ms and impact time of 0.05 ms enable rapid response to magnetic fields, while a response frequency of 3000 Hz ensures consistent performance even in high‑speed switching scenarios. The reed switches also feature a sensitive value of 10‑20 AT and a maximum contact capacity of 2.0 pF, making them suitable for precision sensing and timing circuits.
Manufactured by GODIYMODULES, a reputable supplier in the industrial electrical sector, these reed switches have earned a solid customer rating of 4.6 out of 5 stars based on multiple reviews. Their durability is reinforced by a robust glass envelope that protects the internal reed and contacts from dust, moisture, and mechanical shock, extending the service life in harsh operating conditions. The product’s best‑seller rank within the Reed Switch category demonstrates its popularity among professionals seeking dependable components for automation, robotics, and safety‑critical systems.
Installation is straightforward thanks to the standard 3‑pin layout, which aligns with common PCB footprints and terminal blocks. The switches require no additional biasing components, reducing overall system complexity and cost. Their low power consumption (maximum 4 W) makes them an energy‑efficient choice for battery‑powered or low‑voltage applications, while the 0.25 ms response time contributes to fast actuation in time‑sensitive processes.
Beyond the core electrical characteristics, the kit includes comprehensive documentation that outlines recommended wiring diagrams, polarity considerations, and conversion procedures between NO and NC states. This guidance helps users avoid common pitfalls and accelerates the integration of the switches into existing control panels or new designs. The package also comes with a protective anti‑static bag to safeguard the components during shipping and handling.
Overall, the GODIYMODULES 10‑piece reed switch set delivers a balanced combination of size, performance, and versatility. Whether used in motor control, alarm systems, proximity detection, or any application that benefits from magnetic actuation, these switches provide consistent operation with minimal maintenance. Their ability to operate reliably at both 60 V DC and AC further expands their applicability across a diverse set of industrial projects.
Usage
These reed switches are ideally suited for a variety of industrial and scientific applications. In automation systems, they can serve as position sensors for linear actuators, providing real‑time feedback to controllers. Their fast response time makes them perfect for high‑speed conveyor monitoring, where detecting the presence or absence of a magnetic field quickly can prevent product jams and improve throughput.
Robotics engineers often employ reed switches for joint angle detection and limit switching, taking advantage of the magnetic actuation that does not wear out like mechanical contacts. In safety‑critical environments such as fire alarm panels or emergency shut‑off circuits, the NO/NC conversion capability allows designers to implement fail‑safe logic that defaults to a safe state when power is lost.</n
Additionally, the switches can be integrated into HVAC systems for damper position monitoring, water level detection in tanks, and door/window security sensors. Their ability to operate on both DC and AC voltages up to 60 V expands their use in legacy equipment that may still rely on AC power sources.
For hobbyists and educational institutions, the compact size and straightforward wiring make these switches an excellent teaching tool for demonstrating magnetic sensing principles, circuit design, and the impact of contact resistance on signal integrity.
Why Choose Us
Choosing GODIYMODULES means selecting a partner committed to quality and customer satisfaction. Each reed switch undergoes rigorous testing to verify compliance with international standards for electrical safety and performance. Our manufacturing process incorporates precision glass sealing techniques that protect the internal reed from environmental contaminants, ensuring long‑term reliability even in harsh industrial settings.
We stand behind our products with a responsive technical support team that can assist with design integration, troubleshooting, and customization requests. Our after‑sales service includes a 12‑month warranty covering material defects, giving you confidence that your investment is protected.
Furthermore, our competitive pricing and bulk packaging options enable cost‑effective procurement for large‑scale projects. By sourcing directly from the manufacturer, we eliminate unnecessary middlemen, passing the savings on to you while maintaining strict quality control.
Our commitment to sustainability is reflected in the use of recyclable materials and environmentally friendly manufacturing practices. We continuously seek to reduce waste and energy consumption throughout our production lines, aligning with the growing demand for greener industrial solutions.
Finally, the positive feedback from a global customer base, as reflected in our high rating and best‑seller rank, demonstrates the trust engineers place in our reed switches for critical applications.
Key Features
- Compact 2.5x14mm size fits tight spaces while delivering reliable magnetic actuation.
- Configurable NO/NC operation provides design flexibility for safety‑critical circuits.
- High voltage rating of 60V DC/AC and 0.25A switching current supports diverse industrial loads.
- Fast 0.25 ms response and 3000 Hz frequency ensure precise timing in high‑speed applications.
- Dedicated technical support and 12‑month warranty give peace of mind and reliable after‑sales service.
FAQ
Can these reed switches be used with AC voltage?
Yes, the switches are rated for up to 60 V AC as well as DC, making them suitable for both types of power sources in industrial control panels.
What is the difference between normally open and normally closed configurations?
In a normally open (NO) configuration, the contacts are open when no magnetic field is present and close when the field is applied. In a normally closed (NC) configuration, the contacts are closed without a magnetic field and open when the field is applied. This allows you to choose the logic that best fits your circuit design.
How do I convert a switch from NO to NC?
Conversion is achieved by repositioning the internal reed or changing the wiring to the opposite pins. Detailed conversion instructions are included in the product documentation, and our support team can guide you through the process if needed.
What is the maximum load the switch can handle?
The maximum load current is 0.5 A, with a switching current of 0.25 A. This rating ensures safe operation for most low‑power control and sensing applications.
Are these switches suitable for high‑frequency switching?
Yes, with a response frequency of up to 3000 Hz, the switches can handle high‑frequency signals commonly found in PWM control, encoder feedback, and rapid sensing applications.
